Inheritance diagram for tgBasicActuatorInfo:

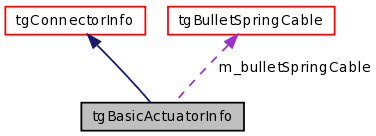

Collaboration diagram for tgBasicActuatorInfo:

Public Member Functions
	tgBasicActuatorInfo (const tgBasicActuator::Config &config)

	tgBasicActuatorInfo (const tgBasicActuator::Config &config, tgTags tags)

	tgBasicActuatorInfo (const tgBasicActuator::Config &config, const tgPair &pair)

virtual tgConnectorInfo *	createConnectorInfo (const tgPair &pair)

virtual void	initConnector (tgWorld &world)

virtual tgModel *	createModel (tgWorld &world)

double	getMass ()

virtual tgConnectorInfo *	createConnectorInfo (const tgPair &pair, const tgTagSearch &tagSearch)

virtual std::vector < tgConnectorInfo * >	createConnectorInfos (const tgPairs &pairs, const tgTagSearch &tagSearch)

btVector3 &	getFrom ()

const btVector3 &	getFrom () const

btVector3 &	getTo ()

const btVector3 &	getTo () const

tgRigidInfo *	getFromRigidInfo ()

const tgRigidInfo *	getFromRigidInfo () const

void	setFromRigidInfo (tgRigidInfo *rigidInfo)

tgRigidInfo *	getToRigidInfo ()

const tgRigidInfo *	getToRigidInfo () const

void	setToRigidInfo (tgRigidInfo *rigidInfo)

btRigidBody *	getToRigidBody ()

btRigidBody *	getFromRigidBody ()

virtual void	chooseRigids (std::set< tgRigidInfo * > rigids)

virtual void	chooseRigids (std::vector< tgRigidInfo * > rigids)

tgRigidInfo *	chooseRigid (std::set< tgRigidInfo * > rigids, const btVector3 &v)

void	addTags (const std::string &space_separated_tags)

void	addTags (const tgTags &tags)

bool	hasTag (const std::string tag) const

bool	hasAllTags (std::string tags)

bool	hasAnyTags (const std::string tags)

bool	hasNoTags ()

tgTags &	getTags ()

const tgTags &	getTags () const

void	setTags (tgTags tags)

std::string	getTagStr (std::string delim=" ") const

Protected Member Functions
tgBulletSpringCable *	createTgBulletSpringCable ()

tgRigidInfo *	findClosestCenterOfMass (std::set< tgRigidInfo * > rigids, const btVector3 &v)

std::set< tgRigidInfo * >	findRigidsContaining (std::set< tgRigidInfo * > rigids, const btVector3 &toFind)

bool	rigidFoundIn (std::set< tgRigidInfo * > rigids, tgRigidInfo *rigid)

Protected Attributes
tgBulletSpringCable *	m_bulletSpringCable

tgPair	m_pair

tgRigidInfo *	m_fromRigidInfo

tgRigidInfo *	m_toRigidInfo

Detailed Description

Definition at line 41 of file tgBasicActuatorInfo.h.

Constructor & Destructor Documentation

tgBasicActuatorInfo::tgBasicActuatorInfo ( const tgBasicActuator::Config & config )

Construct a tgBasicActuatorInfo with just a config. The pair must be filled in later, or factory methods can be used to create instances with pairs.

Definition at line 32 of file tgBasicActuatorInfo.cpp.

Here is the caller graph for this function:

tgBasicActuatorInfo::tgBasicActuatorInfo	(	const tgBasicActuator::Config &	config,
		tgTags	tags
	)

Construct a tgBasicActuatorInfo with just a config and tags. The pair must be filled in later, or factory methods can be used to create instances with pairs.

Definition at line 37 of file tgBasicActuatorInfo.cpp.
