OctaCLSine Class Reference

#include <OctaCLSine.h>

Inheritance diagram for OctaCLSine:
Collaboration diagram for OctaCLSine:

Public Member Functions

 OctaCLSine (BaseSpineCPGControl::Config config, std::string args, std::string resourcePath="", std::string ec="edgeConfig.ini", std::string nc="nodeConfig.ini")

virtual void onSetup (BaseSpineModelLearning &subject)

virtual void onStep (BaseSpineModelLearning &subject, double dt)

virtual void onTeardown (BaseSpineModelLearning &subject)

const double getCPGValue (std::size_t i) const

double getScore () const

virtual void onAttach (BaseSpineModelLearning &subject)

void attach (tgObserver< BaseSpineCPGControl > *pObserver)

void notifyStep (double dt)

void notifySetup ()

void notifyTeardown ()


Protected Member Functions

virtual void setupWaves (BaseSpineModelLearning &subject, array_2D nodeActions, array_2D edgeActions)

virtual array_2D scalePhaseActions (std::vector< std::vector< double > > actions)

virtual array_2D scaleNodeActions (std::vector< std::vector< double > > actions)

virtual array_4D scaleEdgeActions (std::vector< std::vector< double > > actions)

virtual void setupCPGs (BaseSpineModelLearning &subject, array_2D nodeActions, array_4D edgeActions)


Protected Attributes

std::vector
< tgSineStringControl * >
m_sineControllers

CPGEquationsm_pCPGSys

std::vector
< tgCPGActuatorControl * >
m_allControllers

BaseSpineCPGControl::Config m_config

std::string edgeConfigFilename

std::string nodeConfigFilename

configuration nodeConfigData

configuration edgeConfigData

AnnealEvolution edgeEvolution

AnnealEvolution nodeEvolution

AnnealAdapter edgeAdapter

AnnealAdapter nodeAdapter

bool nodeLearning

bool edgeLearning

std::vector< double > initConditions

std::size_t segments

tgDataObserver m_dataObserver

double m_updateTime

std::vector< double > scores

bool bogus


Detailed Description

Inherits from BaseSpineCPGControl, and overrides setupCPGs so different muscle groups can have different ImpedanceControl parameters

Definition at line 39 of file OctaCLSine.h.

Constructor & Destructor Documentation

OctaCLSine::OctaCLSine ( BaseSpineCPGControl::Config  config,
std::string  args,
std::string  resourcePath = "",
std::string  ec = "edgeConfig.ini",
std::string  nc = "nodeConfig.ini"
)

Defining the adapters here assumes the controller is around and attached for the lifecycle of the learning runs. I.E. that the setup and teardown functions are used for tgModel

Definition at line 52 of file OctaCLSine.cpp.

Member Function Documentation

void tgSubject< BaseSpineCPGControl >::attach ( tgObserver< BaseSpineCPGControl > *  pObserver)
inherited

Attach an observer to the subject of the observer.

Parameters
[in,out]pObservera pointer to an observer for the subject; do nothing if the pointer is NULL
void tgSubject< BaseSpineCPGControl >::notifySetup ( )
inherited

Call tgObserver<T>::onSetup() on all observers in the order in which they were attached.

Here is the caller graph for this function:

void tgSubject< BaseSpineCPGControl >::notifyStep ( double  dt)
inherited

Call tgObserver<T>::onStep() on all observers in the order in which they were attached.

Parameters
[in]dtthe number of seconds since the previous call; do nothing if not positive
void tgSubject< BaseSpineCPGControl >::notifyTeardown ( )
inherited

Call tgObserver<T>::onTeardown() on all observers in the order in which they were attached.

Here is the caller graph for this function:

virtual void tgObserver< BaseSpineModelLearning >::onAttach ( BaseSpineModelLearning subject)
inlinevirtualinherited

Notify the observers when an attach action has occurred. Will only occur once, typically before setup

Parameters
[in,out]subjectthe subject being observed

Definition at line 55 of file tgObserver.h.

void OctaCLSine::onSetup ( BaseSpineModelLearning subject)
virtual

Notify the observers when a setup action has occurred.

Parameters
[in,out]subjectthe subject being observed

Reimplemented from BaseSpineCPGControl.

Definition at line 62 of file OctaCLSine.cpp.

void OctaCLSine::onStep ( BaseSpineModelLearning subject,
double  dt
)
virtual

Notify the observers when a step action has occurred.

Parameters
[in,out]subjectthe subject being observed
[in]thenumber of seconds since the previous call; must be positive

Basically nothing to do. Sine controllers will take care of themselves

Todo:
add to config
Todo:
if bogus, stop trial (reset simulation)

Reimplemented from BaseSpineCPGControl.

Definition at line 94 of file OctaCLSine.cpp.

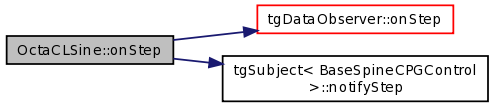

Here is the call graph for this function:

void OctaCLSine::onTeardown ( BaseSpineModelLearning subject)
virtual

Notify the observers when a teardown action has occurred.

Parameters
[in,out]subjectthe subject being observed
Todo:
  • consolidate with other controller classes.
Todo:
  • return length scale as a parameter

Reimplemented from BaseSpineCPGControl.

Definition at line 119 of file OctaCLSine.cpp.

array_4D BaseSpineCPGControl::scaleEdgeActions ( std::vector< std::vector< double > >  actions)
protectedvirtualinherited

Takes a vector of parameters reported by learning, and then converts it into a format used to assign to the CPGEdges Note that if the CPG edges change, this will need to change

Definition at line 364 of file BaseSpineCPGControl.cpp.

Here is the caller graph for this function:

array_2D OctaCLSine::scalePhaseActions ( std::vector< std::vector< double > >  actions)
protectedvirtual

Takes a vector of parameters reported by learning, and then converts it into a format used to assign to the CPGEdges Note that if the CPG edges change, this will need to change

Definition at line 219 of file OctaCLSine.cpp.

Here is the caller graph for this function:

void BaseSpineCPGControl::setupCPGs ( BaseSpineModelLearning subject,
array_2D  nodeActions,
array_4D  edgeActions
)
protectedvirtualinherited
Todo:
: redo with for_each

Reimplemented in KinematicSpineCPGControl, LearningSpineJSON, and TetraSpineCPGControl.

Definition at line 210 of file BaseSpineCPGControl.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:


The documentation for this class was generated from the following files:
