BaseSpineCPGControl Class Reference

#include <BaseSpineCPGControl.h>

Inherits tgObserver< BaseSpineModelLearning >, and tgSubject< BaseSpineCPGControl >.

Inherited by KinematicSpineCPGControl, LearningSpineJSON, LearningSpineSine, OctaCLSine, SpineFeedbackControl, and TetraSpineCPGControl.

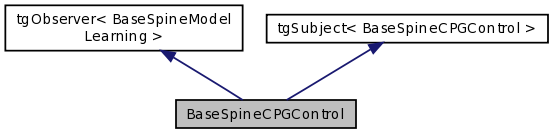

Collaboration diagram for BaseSpineCPGControl:

Classes

struct  Config


Public Member Functions

 BaseSpineCPGControl (BaseSpineCPGControl::Config config, std::string args, std::string resourcePath="", std::string ec="edgeConfig.ini", std::string nc="nodeConfig.ini")

virtual void onStep (BaseSpineModelLearning &subject, double dt)

virtual void onSetup (BaseSpineModelLearning &subject)

virtual void onTeardown (BaseSpineModelLearning &subject)

const double getCPGValue (std::size_t i) const

double getScore () const

virtual void onAttach (BaseSpineModelLearning &subject)

void attach (tgObserver< BaseSpineCPGControl > *pObserver)

void notifyStep (double dt)

void notifySetup ()

void notifyTeardown ()


Protected Member Functions

virtual array_4D scaleEdgeActions (std::vector< std::vector< double > > actions)

virtual array_2D scaleNodeActions (std::vector< std::vector< double > > actions)

virtual void setupCPGs (BaseSpineModelLearning &subject, array_2D nodeActions, array_4D edgeActions)


Protected Attributes

CPGEquationsm_pCPGSys

std::vector
< tgCPGActuatorControl * >
m_allControllers

BaseSpineCPGControl::Config m_config

std::string edgeConfigFilename

std::string nodeConfigFilename

configuration nodeConfigData

configuration edgeConfigData

AnnealEvolution edgeEvolution

AnnealEvolution nodeEvolution

AnnealAdapter edgeAdapter

AnnealAdapter nodeAdapter

bool nodeLearning

bool edgeLearning

std::vector< double > initConditions

std::size_t segments

tgDataObserver m_dataObserver

double m_updateTime

std::vector< double > scores

bool bogus


Detailed Description

BaseSpineCPGControl learns the parameters for a CPG system on a spine like tensegrity structure specified as a BaseSpineModelLearning. Parameters are generated by AnnealEvolution and used in the CPGEquations family of classes. tgImpedanceController controllers are used for the detailed muscle control. Due to the number of parameters, the learned parameters are split into one config file for the nodes and another for the CPG's "edges"

Definition at line 61 of file BaseSpineCPGControl.h.

Constructor & Destructor Documentation

BaseSpineCPGControl::BaseSpineCPGControl ( BaseSpineCPGControl::Config  config,
std::string  args,
std::string  resourcePath = "",
std::string  ec = "edgeConfig.ini",
std::string  nc = "nodeConfig.ini"
)

Defining the adapters here assumes the controller is around and attached for the lifecycle of the learning runs. I.E. that the setup and teardown functions are used for tgModel

Definition at line 133 of file BaseSpineCPGControl.cpp.

Member Function Documentation

void tgSubject< BaseSpineCPGControl >::attach ( tgObserver< BaseSpineCPGControl > *  pObserver)
inherited

Attach an observer to the subject of the observer.

Parameters
[in,out]pObservera pointer to an observer for the subject; do nothing if the pointer is NULL
void tgSubject< BaseSpineCPGControl >::notifySetup ( )
inherited

Call tgObserver<T>::onSetup() on all observers in the order in which they were attached.

Here is the caller graph for this function:

void tgSubject< BaseSpineCPGControl >::notifyStep ( double  dt)
inherited

Call tgObserver<T>::onStep() on all observers in the order in which they were attached.

Parameters
[in]dtthe number of seconds since the previous call; do nothing if not positive
void tgSubject< BaseSpineCPGControl >::notifyTeardown ( )
inherited

Call tgObserver<T>::onTeardown() on all observers in the order in which they were attached.

Here is the caller graph for this function:

virtual void tgObserver< BaseSpineModelLearning >::onAttach ( BaseSpineModelLearning subject)
inlinevirtualinherited

Notify the observers when an attach action has occurred. Will only occur once, typically before setup

Parameters
[in,out]subjectthe subject being observed

Definition at line 55 of file tgObserver.h.

void BaseSpineCPGControl::onSetup ( BaseSpineModelLearning subject)
virtual

Notify the observers when a setup action has occurred.

Parameters
[in,out]subjectthe subject being observed

Reimplemented from tgObserver< BaseSpineModelLearning >.

Reimplemented in SpineFeedbackControl, OctaCLSine, and LearningSpineSine.

Definition at line 175 of file BaseSpineCPGControl.cpp.

void BaseSpineCPGControl::onStep ( BaseSpineModelLearning subject,
double  dt
)
virtual

Notify the observers when a step action has occurred.

Parameters
[in,out]subjectthe subject being observed
[in]thenumber of seconds since the previous call; must be positive
Todo:
add to config
Todo:
if bogus, stop trial (reset simulation)

Implements tgObserver< BaseSpineModelLearning >.

Reimplemented in SpineFeedbackControl, OctaCLSine, and LearningSpineSine.

Definition at line 253 of file BaseSpineCPGControl.cpp.

void BaseSpineCPGControl::onTeardown ( BaseSpineModelLearning subject)
virtual

Notify the observers when a teardown action has occurred.

Parameters
[in,out]subjectthe subject being observed
Todo:
  • consolidate with other controller classes.
Todo:
  • return length scale as a parameter

Reimplemented from tgObserver< BaseSpineModelLearning >.

Reimplemented in SpineFeedbackControl, OctaCLSine, and LearningSpineSine.

Definition at line 281 of file BaseSpineCPGControl.cpp.

array_4D BaseSpineCPGControl::scaleEdgeActions ( std::vector< std::vector< double > >  actions)
protectedvirtual

Takes a vector of parameters reported by learning, and then converts it into a format used to assign to the CPGEdges Note that if the CPG edges change, this will need to change

Definition at line 364 of file BaseSpineCPGControl.cpp.

Here is the caller graph for this function:

void BaseSpineCPGControl::setupCPGs ( BaseSpineModelLearning subject,
array_2D  nodeActions,
array_4D  edgeActions
)
protectedvirtual
Todo:
: redo with for_each

Reimplemented in KinematicSpineCPGControl, LearningSpineJSON, and TetraSpineCPGControl.

Definition at line 210 of file BaseSpineCPGControl.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:


The documentation for this class was generated from the following files:
