tgBasicContactCableInfo Class Reference
Inheritance diagram for tgBasicContactCableInfo:

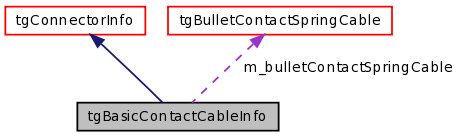

Collaboration diagram for tgBasicContactCableInfo:

Public Member Functions

 tgBasicContactCableInfo (const tgBasicActuator::Config &config)

 tgBasicContactCableInfo (const tgBasicActuator::Config &config, tgTags tags)

 tgBasicContactCableInfo (const tgBasicActuator::Config &config, const tgPair &pair)

virtual tgConnectorInfocreateConnectorInfo (const tgPair &pair)

void initConnector (tgWorld &world)

virtual tgModelcreateModel (tgWorld &world)

double getMass ()

virtual tgConnectorInfocreateConnectorInfo (const tgPair &pair, const tgTagSearch &tagSearch)

virtual std::vector
< tgConnectorInfo * >
createConnectorInfos (const tgPairs &pairs, const tgTagSearch &tagSearch)

btVector3 & getFrom ()

const btVector3 & getFrom () const

btVector3 & getTo ()

const btVector3 & getTo () const

tgRigidInfogetFromRigidInfo ()

const tgRigidInfogetFromRigidInfo () const

void setFromRigidInfo (tgRigidInfo *rigidInfo)

tgRigidInfogetToRigidInfo ()

const tgRigidInfogetToRigidInfo () const

void setToRigidInfo (tgRigidInfo *rigidInfo)

btRigidBody * getToRigidBody ()

btRigidBody * getFromRigidBody ()

virtual void chooseRigids (std::set< tgRigidInfo * > rigids)

virtual void chooseRigids (std::vector< tgRigidInfo * > rigids)

tgRigidInfochooseRigid (std::set< tgRigidInfo * > rigids, const btVector3 &v)

void addTags (const std::string &space_separated_tags)

void addTags (const tgTags &tags)

bool hasTag (const std::string tag) const

bool hasAllTags (std::string tags)

bool hasAnyTags (const std::string tags)

bool hasNoTags ()

tgTagsgetTags ()

const tgTagsgetTags () const

void setTags (tgTags tags)

std::string getTagStr (std::string delim=" ") const


Protected Member Functions

tgRigidInfofindClosestCenterOfMass (std::set< tgRigidInfo * > rigids, const btVector3 &v)

std::set< tgRigidInfo * > findRigidsContaining (std::set< tgRigidInfo * > rigids, const btVector3 &toFind)

bool rigidFoundIn (std::set< tgRigidInfo * > rigids, tgRigidInfo *rigid)


Protected Attributes

tgBulletContactSpringCablem_bulletContactSpringCable

tgPair m_pair

tgRigidInfom_fromRigidInfo

tgRigidInfom_toRigidInfo


Detailed Description

Definition at line 41 of file tgBasicContactCableInfo.h.

Constructor & Destructor Documentation

tgBasicContactCableInfo::tgBasicContactCableInfo ( const tgBasicActuator::Config config)

Construct a tgBasicContactCableInfo with just a config. The pair must be filled in later, or factory methods can be used to create instances with pairs.

Definition at line 41 of file tgBasicContactCableInfo.cpp.

Here is the caller graph for this function:

tgBasicContactCableInfo::tgBasicContactCableInfo ( const tgBasicActuator::Config config,
tgTags  tags
)

Construct a tgBasicContactCableInfo with just a config and tags. The pair must be filled in later, or factory methods can be used to create instances with pairs.

Definition at line 46 of file tgBasicContactCableInfo.cpp.

tgBasicContactCableInfo::tgBasicContactCableInfo ( const tgBasicActuator::Config config,
const tgPair pair
)

Construct a tgBasicContactCableInfo from its endpoints, radius and density.

Parameters
[in]fromone endpoint
[in]tothe other endpoint
[in]configcontains the radius and density
Todo:
: make sure that tgPairs returns references to the vectors...

Definition at line 51 of file tgBasicContactCableInfo.cpp.

Member Function Documentation

tgConnectorInfo * tgBasicContactCableInfo::createConnectorInfo ( const tgPair pair)
virtual

Create a tgConnectorInfo* from a tgPair

Implements tgConnectorInfo.

Reimplemented in tgKinematicContactCableInfo.

Definition at line 57 of file tgBasicContactCableInfo.cpp.

Here is the call graph for this function:


The documentation for this class was generated from the following files:
