Inheritance diagram for tgSimView:

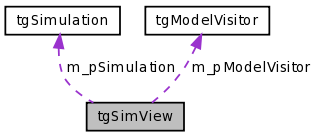

Collaboration diagram for tgSimView:

Public Member Functions
	tgSimView (tgWorld &world, double stepSize=1.0/120.0, double renderRate=1.0/60.0)

tgWorld &	world ()

virtual void	setup ()

virtual void	teardown ()

virtual void	run ()

virtual void	run (int steps)

virtual void	render () const

virtual void	render (const tgModelVisitor &r) const

virtual void	reset ()

void	setRenderRate (double renderRate)

double	getRenderRate () const

void	setStepSize (double stepSize)

double	getStepSize () const

Protected Member Functions
void	bindToSimulation (tgSimulation &simulation)

void	releaseFromSimulation ()

void	bindToWorld (tgWorld &world)

bool	isInitialzed () const

Protected Attributes
tgSimulation *	m_pSimulation

tgModelVisitor *	m_pModelVisitor

double	m_stepSize

double	m_renderRate

double	m_renderTime

Friends
class	tgSimulation

Detailed Description

Definition at line 33 of file tgSimView.h.

Constructor & Destructor Documentation

tgSimView::tgSimView	(	tgWorld &	world,
		double	stepSize = `1.0/120.0`,
		double	renderRate = `1.0/60.0`
	)

The only constructor..

Parameters

[in]	world	a reference to the tgWorld being simulated.
[in]	stepSize	the time interval for advancing the simulation; std::invalid_argument is thrown if not positive
[in]	renderRate	the time interval for updating the graphics; std::invalid_argument is thrown if less than stepSize

Exceptions

std::invalid_argument if stepSize is not positive or renderRate is less than stepSize

Definition at line 35 of file tgSimView.cpp.

Member Function Documentation

void tgSimView::bindToSimulation ( tgSimulation & simulation )

protected

Called by a constructor of friend class tgSimulation when an instance of this class is passed as argument to the constructor. Cache a back pointer to the tgSimulation

Parameters

[in,out] simulation a reference to the tgSimulation being constructed

Exceptions

std::invalid_argument if the tgSimView already has a back pointer.

Definition at line 76 of file tgSimView.cpp.

Here is the caller graph for this function:

void tgSimView::bindToWorld ( tgWorld & world )

protected

When bound to a tgSimulation, a tgWorld becomes available for the first time.

Parameters

[in,out] world a reference to a newly-available tgWorld

Definition at line 104 of file tgSimView.cpp.

Here is the caller graph for this function:

double tgSimView::getRenderRate ( ) const

inline

Return the interval in seconds at which the graphics are rendered.

Returns: the interval in seconds at which the graphics are rendered

Definition at line 101 of file tgSimView.h.

double tgSimView::getStepSize ( ) const

inline

Return the interval in seconds at which the graphics are rendered.

Returns: the interval in seconds at which the graphics are rendered

Definition at line 116 of file tgSimView.h.

bool tgSimView::isInitialzed ( ) const

inlineprotected

Todo:: Get rid of this.

Definition at line 145 of file tgSimView.h.

Here is the caller graph for this function:

void tgSimView::releaseFromSimulation ( )

protected

Called by the destructor of friend class tgSimulation. Assure that m_pView has a NULL back pointer to its tgSimulation. This allows the tgSimView to be re-used.

Definition at line 95 of file tgSimView.cpp.

void tgSimView::run ( )

virtual

Run until stoppeed by user

Reimplemented in tgSimViewGraphics.

Definition at line 131 of file tgSimView.cpp.

Here is the caller graph for this function:

void tgSimView::run ( int steps )

virtual

Run for a specific number of steps

Reimplemented in tgSimViewGraphics.

Definition at line 137 of file tgSimView.cpp.

Here is the call graph for this function:

void tgSimView::setRenderRate ( double renderRate )

Set the interval in seconds at which the graphics are to be rendered. It is set to the minimum of the renderRate argument and the current step size.

Parameters

[in] renderRate the interval in seconds at which the graphics are to be rendered

Definition at line 189 of file tgSimView.cpp.

Here is the caller graph for this function:

void tgSimView::setStepSize ( double stepSize )

Set the interval in seconds at which the simulation is advanced. The render rate is adjusted to be no less than stepSize.

Parameters

[in] stepSize the interval in seconds at which the simulation is advanced; std::invalid_argument is thrown if stepSize is not positive

Exceptions

std::invalid_argument if stepSize is not positive

Definition at line 197 of file tgSimView.cpp.

Here is the call graph for this function:

tgWorld& tgSimView::world ( )

inline

Return a reference to the tgWorld being simulated.

Returns: a reference to the tgWorld being simulated

Definition at line 64 of file tgSimView.h.

Friends And Related Function Documentation

friend class tgSimulation

friend

Allow tgSimulation to set tgSimView::m_pSimulation to be a back pointer to itself when the tgSimView is passed to the tgSimulation.

Definition at line 40 of file tgSimView.h.

Member Data Documentation

tgModelVisitor* tgSimView::m_pModelVisitor

protected

An object that knows how to visit the various models for rendering or data logging.

Note: This is a pointer to avoid #including the header file.

Definition at line 162 of file tgSimView.h.

tgSimulation* tgSimView::m_pSimulation

protected

A back pointer to the simulation that owns this view. Made protected to allow tgSimulatorWithGraphics to inherit it. The constructor initializes it to NULL and it becomes non-NULL when added to a simulation.

Definition at line 155 of file tgSimView.h.

double tgSimView::m_renderRate

protected

The interval in seconds at which the graphics are rendered. It must be be greater than or equal to m_stepSize.

Definition at line 175 of file tgSimView.h.

double tgSimView::m_renderTime

protected

The time in seconds when the next render should be. It must be non-negative.

Definition at line 181 of file tgSimView.h.

double tgSimView::m_stepSize

protected

The interval in seconds at which the simulation is advanced. It must be positive and it must be less than or equal to m_renderRate.

Definition at line 169 of file tgSimView.h.

The documentation for this class was generated from the following files:

core/tgSimView.h
core/tgSimView.cpp
