#include <NestedStructureTestModel.h>
Inherits tgSubject< NestedStructureTestModel >, tgModel, tgSubject< NestedStructureTestModel >, and tgModel.
The NestedStructureTestModel implements a tensegrity with rigid tetrahedrons and six strings between segments, also known as Tetraspine.
Definition at line 46 of file NestedStructureTestModel_rb.h.
NestedStructureTestModel::NestedStructureTestModel |
( |
size_t |
segments | ) |
|
The only constructor. The model details are instantiated once setup is called typically when the model is added to a simulation.
- Parameters
-
[in] | segments,a | positive integer dictating how many rigid segments will be constructed. |
Definition at line 45 of file NestedStructureTestModel.cpp.
virtual NestedStructureTestModel::~NestedStructureTestModel |
( |
| ) |
|
|
inlinevirtual |
void tgModel::addChild |
( |
tgModel * |
pChild | ) |
|
|
inherited |
Add a sub-model to this model. The model takes ownership of the child sub-model and is responsible for deallocating it.
- Parameters
-
[in,out] | pChild | a pointer to a sub-model |
- Exceptions
-
std::invalid_argument | is pChild is NULL, this object, or already a descendant |
- Todo:
- Make sure that every child appears no more than once in the tree.
Definition at line 126 of file tgModel.cpp.
Attach an observer to the subject of the observer.
- Parameters
-
[in,out] | pObserver | a pointer to an observer for the subject; do nothing if the pointer is NULL |
template<typename T >
std::vector<T*> tgModel::find |
( |
const tgTagSearch & |
tagSearch | ) |
|
|
inlineinherited |
Get a vector of descendants sorted by type and a tagsearch. Useful for pulling out muscle groups, or similar.
- Parameters
-
[in] | tagSearch,a | tagSearch that contains the desired tags |
- Returns
- a std::vector of pointers to members that match the tag search and typename T
Definition at line 129 of file tgModel.h.
template<typename T >
std::vector<T*> tgModel::find |
( |
const std::string & |
tagSearch | ) |
|
|
inlineinherited |
Get a vector of descendants sorted by type and a tagsearch. Useful for pulling out muscle groups, or similar.
- Parameters
-
[in] | tagSearch,a | std::string& that contains the desired tags |
- Returns
- a std::vector of pointers to members that match the tag search and typename T
Definition at line 142 of file tgModel.h.
std::vector< tgModel * > tgModel::getDescendants |
( |
| ) |
const |
|
inherited |
Return a std::vector of const pointers to all sub-models.
- Todo:
- examine whether this should be public, and perhaps create a read only version
- Returns
- a std::vector of const pointers all sub-models.
- Todo:
- Unnecessary copying can be avoided by pasing the result collection in the recursive step.
Definition at line 174 of file tgModel.cpp.
const std::vector< tgLinearString * > & NestedStructureTestModel::getMuscles |
( |
const std::string & |
key | ) |
const |
Get a group of muscles according to the provided key. Groups are populated during setup.
- Parameters
-
[in] | key | - a std:string* used as a key to a std::map from a string to a vector of muscles |
- Returns
- a std::vector of pointers to the muscles found by the key
Definition at line 198 of file NestedStructureTestModel.cpp.
size_t NestedStructureTestModel::getSegments |
( |
| ) |
const |
|
inline |
Return a std::size_t indicating the number of segments in the tetraSpine.
- Returns
- a std::size_t with the value of m_segments
Definition at line 99 of file NestedStructureTestModel.h.
Call tgObserver<T>::onStep() on all observers in the order in which they were attached.
- Parameters
-
[in] | dt | the number of seconds since the previous call; do nothing if not positive |

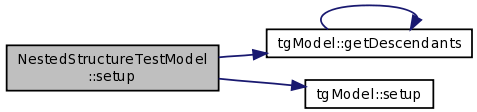

void NestedStructureTestModel::setup |
( |
tgWorld & |
world | ) |
|
|
virtual |
Create the model. Place the rods and strings into the world that is passed into the simulation. This is triggered automatically when the model is added to the simulation, when tgModel::setup(world) is called (if this model is a child), and when reset is called. Also notifies controllers of setup.
- Parameters
-
[in] | world | - the world we're building into |
Reimplemented from tgModel.
Definition at line 135 of file NestedStructureTestModel.cpp.

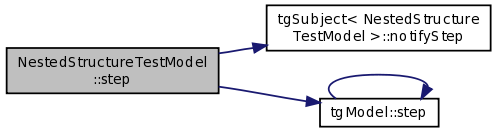

virtual void NestedStructureTestModel::step |
( |
const double |
dt | ) |
|
|
virtual |
Step the model, its children. Notifies controllers of step.
- Parameters
-
[in] | dt,the | timestep. Must be positive. |
Reimplemented from tgModel.
void NestedStructureTestModel::step |
( |
double |
dt | ) |
|
|
inlinevirtual |
Advance the simulation.
- Parameters
-
[in] | dt | the number of seconds since the previous call; std::invalid_argument is thrown if dt is not positive |
- Exceptions
-
std::invalid_argument | if dt is not positive |
- Note
- This is not necessarily const for every child.
Reimplemented from tgModel.
Definition at line 178 of file NestedStructureTestModel_rb.h.
void tgModel::teardown |
( |
| ) |
|
|
virtualinherited |
Deletes the children (undoes setup)
Reimplemented in tgBaseString, ContactTestModel, tgRod, tgRBString, tgLinearString, PrismModel, T6Model, BaseSpineModelLearning, TetraSpineLearningModel, FlemonsSpineModelLearningCL, FlemonsSpineModelLearning, and RibModel.
Definition at line 73 of file tgModel.cpp.
std::string tgModel::toString |
( |
std::string |
prefix = "" | ) |
const |
|
virtualinherited |
Returns the tag names of this model and its children
- Parameters
-
[in] | prefix | a string to append to |
- Returns
- the original string with this model and its children's tags appended
Definition at line 156 of file tgModel.cpp.
The documentation for this class was generated from the following files:
